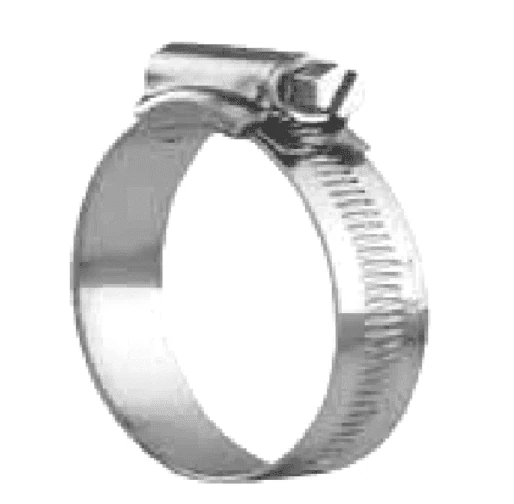

Worm Drive Hose Clamps - Stainless Steel, available in various sizes and ranges.
Key specifications
- Part numbers
- 18 options — see the table below
- Sizes
- 8-12mm (Size 000), 10-16mm (Size 00M), 12-20mm (Size 00), 16-25mm (Size 25A), 20-32mm (Size 1A), 25-40mm (Size 1X), 32-50mm (Size 2A) and 11 more sizes — see the table below
- Material
- Stainless Steel
Part numbers & specifications
| Part No. | Description | Size |
|---|---|---|
| 135051 | Size 000 Range 8mm To 12mm | 8-12mm (Size 000) |
| 135052 | Size 00M Range 10mm To 16mm | 10-16mm (Size 00M) |
| 135053 | Size 00 Range 12mm To 20mm | 12-20mm (Size 00) |
| 135054 | Size 25A Range 16mm To 25mm | 16-25mm (Size 25A) |
| 135055 | Size 1A Range 20mm To 32mm | 20-32mm (Size 1A) |
| 135056 | Size 1X Range 25mm To 40mm | 25-40mm (Size 1X) |
| 135057 | Size 2A Range 32mm To 50mm | 32-50mm (Size 2A) |
| 135058 | Size 2X Range 40mm To 60mm | 40-60mm (Size 2X) |
| 135059 | Size 3 Range 50mm To 70mm | 50-70mm (Size 3) |
| 135060 | Size 3X Range 60mm To 80mm | 60-80mm (Size 3X) |
| 135061 | Size 4 Range 70mm To 90mm | 70-90mm (Size 4) |
| 135062 | Size 4X Range 90mm To 100mm | 90-100mm (Size 4X) |
| 135063 | Size 110A Range 90mm To 110mm | 90-110mm (Size 110A) |
| 135064 | Size 5 Range 100mm To 120mm | 100-120mm (Size 5) |
| 135065 | Size 130A Range 110mm To 130mm | 110-130mm (Size 130A) |
| 135066 | Size 6 Range 120mm To 140mm | 120-140mm (Size 6) |
| 135067 | Size 6X Range 130mm To 150mm | 130-150mm (Size 6X) |
| 135067A | Size 160A Range 140mm To 160mm | 140-160mm (Size 160A) |
