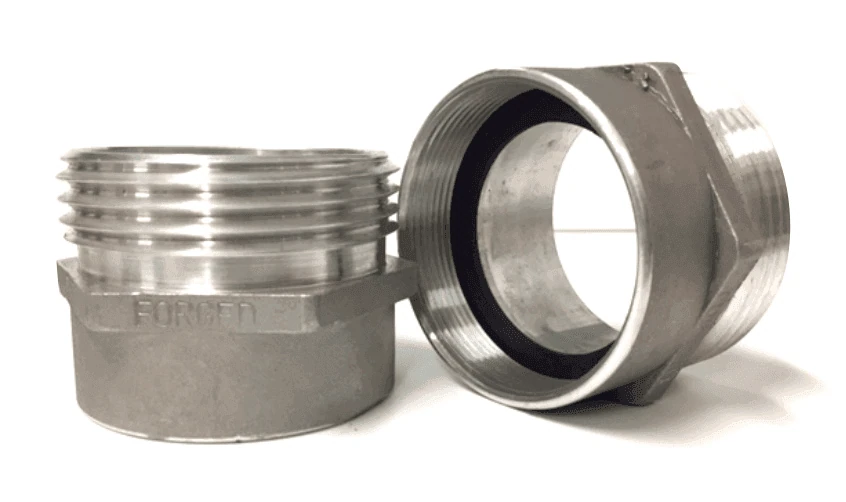

Key specifications
- Part numbers
- 15 options — see the table below
- Sizes
- 38mm, 50mm, 65mm
- Material
- Forged Aluminium
- Connection type
- BSP on all; CFA, MFB, NSW, QRT, SA depending on part number
- Male / female
- Male to Female
Part numbers & specifications
| Part No. | Description | Size | Connection typeother than BSP |
|---|---|---|---|
| 120030 | CFA Male X 38 BSP Female Aluminium Adaptor | 38mm | CFA |
| 120031 | CFA Male X 50 BSP Female Aluminium Adaptor | 50mm | CFA |
| 120032 | CFA Male X 65 BSP Female Aluminium Adaptor | 65mm | CFA |
| 121030 | MFB Male X 38 BSP Female Aluminium Adaptor | 38mm | MFB |
| 121031 | MFB Male X 50 BSP Female Aluminium Adaptor | 50mm | MFB |
| 121032 | MFB Male X 65 BSP Female Aluminium Adaptor | 65mm | MFB |
| 122030 | NSW Male X 38 BSP Female Aluminium Adaptor | 38mm | NSW |
| 122031 | NSW Male X 50 BSP Female Aluminium Adaptor | 50mm | NSW |
| 122032 | NSW Male X 65 BSP Female Aluminium Adaptor | 65mm | NSW |
| 123030 | QRT Male X 38 BSP Female Aluminium Adaptor | 38mm | QRT |
| 123031 | QRT Male X 50 BSP Female Aluminium Adaptor | 50mm | QRT |
| 123032 | QRT Male X 65 BSP Female Aluminium Adaptor | 65mm | QRT |
| 124030 | SA Male X 38 BSP Female Aluminium Adaptor | 38mm | SA |
| 124031 | SA Male X 50 BSP Female Aluminium Adaptor | 50mm | SA |
| 124032 | SA Male X 65 BSP Female Aluminium Adaptor | 65mm | SA |
